DOB 38mm AC LED Light Module Replacement 50Hz / 60Hz Frequency

Name: DOB 38mm AC LED Light Module Replacement 50Hz 60Hz Frequency
Brand: RELIGHT
Price: 1 USD

Ask Latest Price

Video Channel

MOQ :100M

Place of Origin :CHINA

Brand Name :RELIGHT

Certification :CE,ETL,UL

Model Number :DOB

CRI :90/80

Protection :IP20

Input :200-240Vac

Frequency :50/60Hz

Beam Angle :120 deg

Power :AC

Various CCT available :2700/3000/4000/5000/5700/6500K

Price :Contact us to get best price

Delivery Time :2-3weeks

Payment Terms :T/T

Supply Ability :10000M/M

Contact Now

Add to Cart

View Product Description

Features:

AC230V-5W
Connects directly to AC Power
Various CCT available:2700/3000/3500/4000/5000/5700/6500K
CRI:90/80
Macadam 3/5/7steps color bin
Solutions for Down light / Spotlight/Candle light/Ceiling light
AC line voltage 230V input directly
Power factor higher than 0.9
TRIAC dimmable

Absolute maximum rating at 25℃

P/N	Size	Input	Power	PF	Flux	Efficiency	CCT	CRI	Dimming
P/N	mm	Vac	W	-	Lm	Lm/W	K	-	-
RL-LMD38A1A1AH005-827FF	Ø38	230	15	0.9	500	100	2700	80	TRIAC
RL-LMD38A1A1AH005-830FF	Ø38	230	15	0.9	525	105	3000	80	TRIAC
RL-LMD38A1A1AH005-840FF	Ø38	230	15	0.9	550	110	4000	80	TRIAC
RL-LMD38A1A1AH005-850FF	Ø38	230	15	0.9	550	110	5000	80	TRIAC
RL-LMD38A1A1AH005-865FF	Ø38	230	15	0.9	550	110	6500	80	TRIAC

Optical-Electrical Characteristics at 25℃

Input	200-240Vac
Frequency	50/60Hz
Rated power	Typical power(±10% tolerance)
PF	>0.90
Protection	IP20
Surge level	2.5KV
Hi-pot	1.5KVac
Storage temperature	-30-85℃
Operation temperature	-30-80℃(Ts ofled components)
Beam Angle	120 deg
Flicker index	<5%

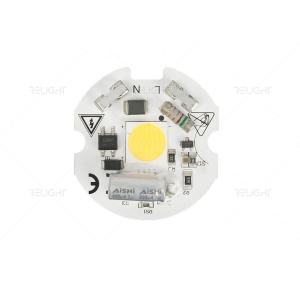

DOB 38mm AC LED Light Module Replacement 50Hz / 60Hz Frequency

Safety Information

1. The LED module and all its components shall not be subjected to mechanical stress.
2. Correct electrical polarity, or not module may be damaged.
3. Ensure the power supply is suitable for the total load.
4. Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module.
5. Installation of LED modules shall be made refering to all applicable electrical and safety standards.
6. Suitable for luminaire of protection class 1, grounding is mandatory to comply with safety standards.
7. The AC light engine needs to be mounted to a heat sink with a thermal interface material between them.
8. It is better to use the AC led module with safety cover.
9. Modules may be hot to the touch. Use caution when handling.
